Name: Transmission Line Stringing Equipment Hydraulic Cable Laying Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x35
Price: 24.00 USD
Availability: InStock

MOQ:	1set
Price:	USD48,500.00-51,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x35

Type:

Hydraulic Cable Laying Tensioner

Max Reverse Pulling Force:

2x30kN

Max Reverse Pulling Speed:

5km/h

Max Continuous Tension:

2x35kN

Cooling System:

Water

Diesel:

77kw(103hp)

Highlight:

hydraulic cable laying tensioner

transmission line stringing equipment

cable tensioner with hydraulic system

Product Description

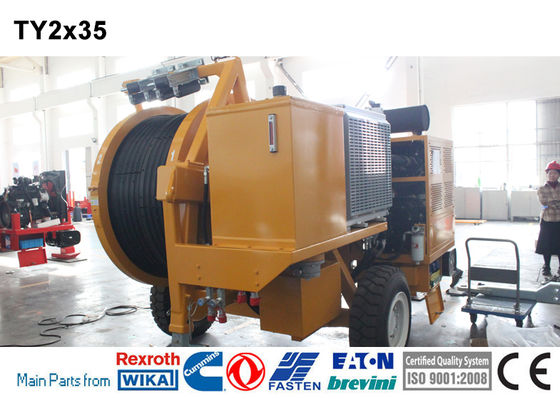

Transmission Line Stringing Equipment Hydraulic Cable Laying Tensioner

TY2x35 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics	Bull-wheel diameter: 1300mm
	Max conductor diameter: 40mm
	Groove number: 2x5
	Total weight: 4500kg
	Overall dimension (lengthwidthheight): 4300×2250×2700mm
Performance	Max intermittent tension: 2x40kN
	Max continuous tension: 2x35kN
	Speed at max tension: 2.5km/h
	Max speed: 5km/h
	Pull at max speed: 2x20kN
	Max reverse pulling force: 2x30kN
	Max reverse pulling speed: 5km/h
Main configuration	Engine: Cummins
	Main hydraulic valves: USA Sun / Italy ATOS
	Speed reducer: German Rexroth / Italy Bonfiglioli
	Main motor: German Rexroth/French Leduc
	Hydraulic pump: German Rexroth/Dnish Danfoss
Engine	Diesel: 77kw(103hp)
	Electrical system: 24V
	Cooling system: water
Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.
Configuration	Hydraulic dynamometers
	Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
	Grounding connection point
	Digital speed and meter counter
	Hydraulic oil cooling system
Additional Devices	Lighting system for the trailer
	Swivel guide rope roller
	2 hydraulic conductor clamps for drum change operations (extra charge)
	Air brake system for the trailer (extra charge)
