Name: Lineman Tools BSYK-15 Hydraulic Hole Puncher Punching Force 150KN
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: BSYK-15
Availability: InStock

MOQ:	5set
Price:	Negotiable
Standard Packaging:	Box
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BSYK-15

Type:

Hydraulic Hole Puncher

Punching Force:

150KN

Punching Range:

φ63mm- φ114mm

Max Thickness Of Plate:

3.5mm Mild Steel

Stroke:

25mm

Weight:

Approx.N.W 16KG G.W 20KG

Highlight:

hydraulic hole puncher lineman tool

150KN punching force hole puncher

BSYK-15 hydraulic lineman tool

Product Description

Lineman Tools BSYK-15 Hydraulic Hole Puncher Punching Force 150KN

Model	BSYK-8A	BSYK-8B	BSYK-15
Punching range	φ16mm-φ51mm	φ22mm- φ60mm	φ63mm- φ114mm
Max thickness of plate	3.5mm mild steel	3.5mm mild steel	3.5mm mild steel
Punching force	100KN	100KN	150KN
Stroke	25mm	25mm	25mm
Weight	approx.N.W 5.6KG G.W 9.25KG	approx.N.W 5.6KG G.W 9.5KG	approx.N.W 16KG G.W 20KG
Package	plastic box	plastic box	steel case
Round type dies	φ16mm ,φ20mm , φ26.2mm, φ35.2mm, φ39mm, φ51mm	Φ22mm,φ27.5mm,φ34mm, φ43mm, φ49mm, φ60mm	Φ63mm ,φ76mm , φ90mm, φ101mm, φ114mm

FUNCTION
Compact, light, fast. It could be used on carbon steel plate for digging round and square holes in 3.5mm or below. It could also be used with other specific dies of hole digger. The solid positioning drive lead to approach working point easily.
Wide hole digging range. It could be used on switchboard, power transmission panel, meter plate, steel plate to dig hole or punch hole.Operate conveniently, punched holes smooth without burr.
It covers six kinds of dies, two bolts, one washer, hole digger unit and plastic carrying case.
It could be used for digging square hole if fitted with square dies. Any specific size of round and square dies could be ordered.
Can be used for metallurgy , petroleum, chemical, electronics, electrical, machinery and other industries to install and repair the opening of wire and pipe, indicator light, instrument witch and so on.
For the panel of the switch box and so on, the surface of the paint will not be damaged after the perforation.

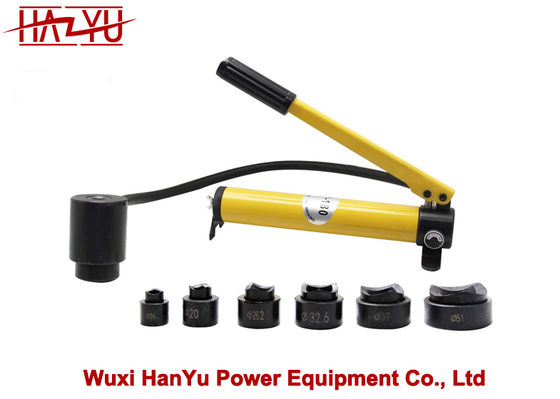

Lineman Tools BSYK-15 Hydraulic Hole Puncher Punching Force 150KN 0
