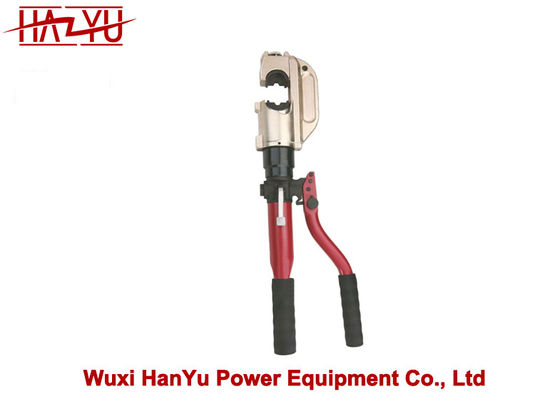

Name: Lineman Tools HT-12038 Hydraulic Cable Lug Crimping Tool Crimping Force 120KN
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: HT-12038
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

HT-12038

Length:

560mmmm

Crimping Range:

16-400mm2

Crimping Force:

120KN

Stroke:

38mm

Crimping Type:

Hexagon

Type:

Hydraulic Cable Lug Crimping Tool

Highlight:

hydraulic lineman tools

hydraulic lineman hand tools

120kn lineman tools

Product Description

Lineman Tools HT-12038 Hydraulic Cable Lug Crimping Tool Crimping Force 120KN

Quick Details
Head Design: Crimping head, Rotates 180°, flip top style
Hand-load Button: Manual retract in case of need
Handle: High tensile aluminum alloy handiness
Handle grip: Prevent-slip handle

Model	HT-12030
Crimping range	16-400mm2
Crimping force	120KN
Crimping type	Hexagon
Stroke	38mm
Length	560mm
Weight	6.8kg
Package	Aluminium alloy code case
Standard accessories	50, 70, 95, 120, 150, 185, 240, 300, 400mm2

General features
The tool has stages speed of the ram and automatically switches from a fast advancing speed of dies to a slower crimping speed.
With interchangeable crimping dies with multiple crimping geometry’s.
The tool is provided with max pressure valve, when the max pressure is activated and a “click” is heard to warn the operator stopping working.
For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.

Lineman Tools HT-12038 Hydraulic Cable Lug Crimping Tool Crimping Force 120KN 0
