Name: Lineman Tools NEC-400U Hydraulic Battery Crimping Tool For Cable
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: NEC-400U
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

NEC-400U

Crimp/charge:

120times (Cu150mm2)

Crimping Force:

130KN

Stroke:

20mm

Crimping Die:

16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2

Crimping Range:

16-400mm2

Type:

Electric Battery Crimping Tool For Cable

Highlight:

hydraulic lineman tools

hydraulic lineman hand tools

Product Description

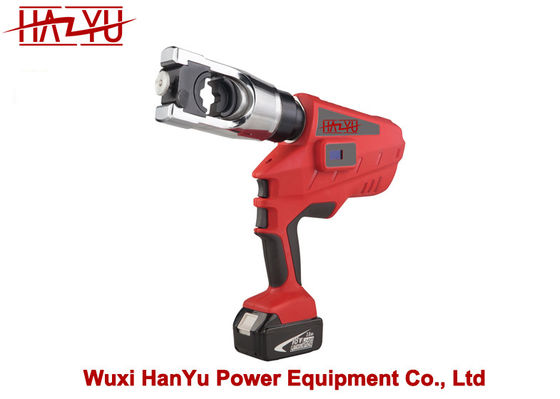

Lineman Tools NEC-400U Hydraulic Battery Crimping Tool For Cable

Model	NEC-400U
Crimping force	130KN
Crimping cycle	10-20s (depend on the size of cable)
Stroke	20mm
Crimping range	16-400mm2
Crimp/charge	120times (Cu150mm2)
Capacity	3.0Ah
Voltage	18V
Crimping die	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Charging time	45minutes
Package	Plastic case
Charger	1pc (AC110-240V,50-60Hz)
Battery	2pcs
Sealing ring of cylinder	1set
Sealing ring of safety valve	1set

Battery Crimping Tool
The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.

Battery Multi-Functional Tool
① Head rotates 360°
② OLED Display (Crimp Times, Pressure, Voltage)
③ LED Light
④ Emergency Pressure Release Button
⑤ All tools can be controlled by one trigger
⑥ Ergonomic design for one hand operation. Micro computer control system-automatically detect the pressure
⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles

Lineman Tools NEC-400U Hydraulic Battery Crimping Tool For Cable 0
