Name: Lineman Tools 60KN Portable Electric Battery Crimping Tool for Cable
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: NEC-300
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

NEC-300

Type:

Electric Battery Crimping Tool

Crimping Force:

60KN

Stroke:

17mm

Crimping Range:

16-300mm2

Crimping Die:

16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2

Capacity:

3.0Ah

Highlight:

portable lineman tools

portable lineman hand tools

Product Description

Lineman Tools 60KN Portable Electric Battery Crimping Tool for Cable

Model	NEC-300
Crimping force	60KN
Crimping range	16-300mm2
Stroke	17mm
Crimp/charge	320times (Cu150mm2)
Crimping cycle	3-6s (depend on the size of cable)
Voltage	18V
Capacity	3.0Ah
Charging time	45minutes
Package	Plastic case
Crimping die	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
Battery	2pcs
Charger	1pc (AC110-240V,50-60Hz)
Sealing ring of cylinder	1set
Sealing ring of safety valve	1set

General features
The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

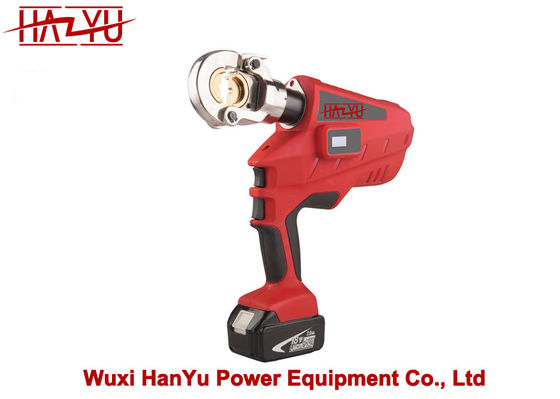

Lineman Tools 60KN Portable Electric Battery Crimping Tool for Cable 0

① Head rotates 360°

② OLED Display (Crimp Times, Pressure, Voltage)

③ LED Light

④ Emergency Pressure Release Button

⑤ All tools can be controlled by one trigger

⑥ Ergonomic design for one hand operation. Micro computer control system-automatically detect the pressure

⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles
