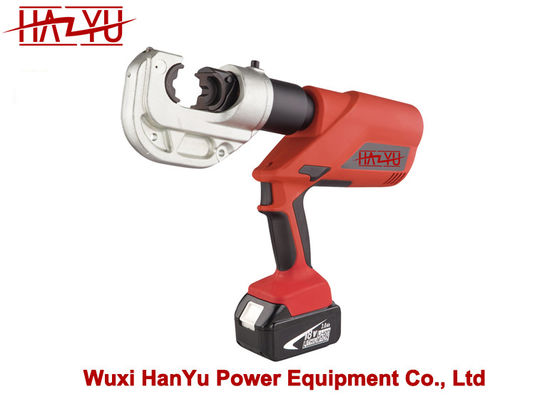

Lineman Tools EC-400B Multi-Functional 130KN Battery Crimping Tool

320times

(Cu150mm2)

320times

(Cu150mm2)

320times

(Cu150mm2)

120times

(Cu150mm2)

3-6s

(depend on the size of cable)

3-6s

(depend on the size of cable)

10-16s

(depend on the size of cable)

10-20s

(depend on the size of cable)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

Battery Multi-Functional Tool

① Head rotates 350°

② LED Light

③ A manual Retraction Button

④ All tools can be controlled by one trigger

⑤ Ergonomic design for one hand operation

⑥ Micro computer control system-automatically detect the pressure

General features

1. The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
2. A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
3. The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
4. The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
6. A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.

Battery Crimping Tool

1. Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
2. The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
3. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
4. One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
5. A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
