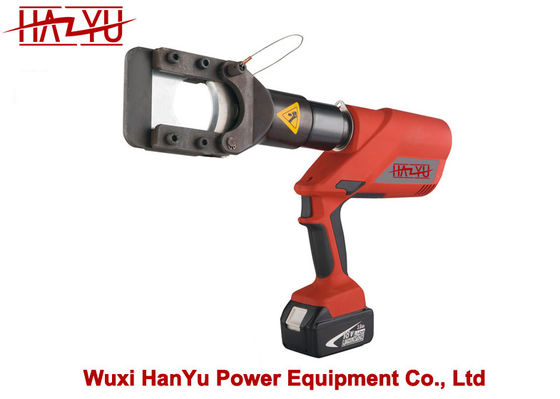

Name: Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: EC-40A
Availability: InStock

MOQ:	20pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	3000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

EC-40A

Type:

EC-40A Battery Cable Cutter

Cutting Range:

40mm ACSR Cable

Cutting Force:

70KN

Stroke:

42mm

Voltage:

18V

Capacity:

3.0Ah

Highlight:

hydraulic lineman tools

18v lineman tools

18v hydraulic cable cutter

Product Description

Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter

EC-40A, Battery cable cutter for Φ40mm Cu/Al cable and armored cable

EC-50A, Battery cable cutter for Φ50mm Cu/Al cable and armored cable

EC-65C, Battery cable cutter for Φ65mm Cu/Al cable and armored cable

EC-85A, Battery cable cutter for Φ85mm Cu/Al cable and armored cable

EC-2432A, Battery screw cutter for M14-M24

Technical Data
Model	EC-40A	EC-50A	EC-65C	EC-85A	EC-2432A
Cutting force	70KN	70KN	120KN	60KN	120KN
Cutting range	40mm Cu/Al cable and armored cable	50mm Cu/Al cable and armored cable	65mm Cu/Al cable and armored cable	85mm Cu/Al cable and armored cable	M14-M24
Cutting range	40mm ACSR cable	50mm ACSR cable
Stroke	42mm	52mm	42mm	92mm	32mm
Voltage	18V	18V	18V	18V	18V
Capacity	3.0Ah	3.0Ah	3.0Ah	3.0Ah	3.0Ah
Charging time	45minutes	45minutes	45minutes	45minutes	45minutes
Package	Plastic case	Plastic case	Plastic case	Plastic case	Plastic case
Accessories
Blade	1set	1set	1set	1set	1set
Battery	2pcs	2pcs	2pcs	2pcs	2pcs
Charger	1pc (AC110-240V, 50-60Hz)	1pc (AC110-240V, 50-60Hz)	1pc (AC110-240V, 50-60Hz)	1pc (AC110-240V, 50-60Hz)	1pc (AC110-240V, 50-60Hz)
Sealing ring of cylinder	1set	1set	1set	1set	1set
Sealing ring of safety valve	1set	1set	1set	1set	1set

Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter 0

① One key control

② Cutting head rotates 350°

③ Two stage hydraulics

④ Shorter charging cycles

⑤ Automatic retraction when crimp is completed

⑥ Battery power display
