Lineman Tools NEC-85C Battery Powered Cable Cutter Electric Power Cable Cutting Tool
  • name
  • name

Lineman Tools NEC-85C Battery Powered Cable Cutter Electric Power Cable Cutting Tool

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Case
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 3000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
NEC-85C
Cutting Range:
85mm Cu/Al Cable And Armored Cable
Capacity:
3.0Ah
Charging Time:
45minutes
Cutting Force:
120KN
Stroke:
41mm
Type:
Electric Power Cable Cutting Tool
Highlight:

120kn lineman tools

,

120kn battery powered cable cutter

Product Description

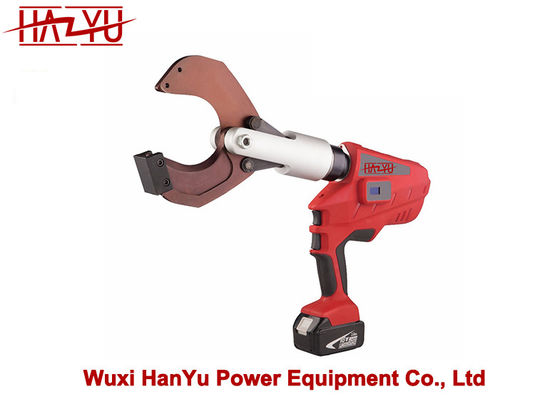

Lineman Tools NEC-85C Battery Powered Cable Cutter Electric Power Cable Cutting Tool



Technical Data

Model NEC-40A NEC-50A NEC-55A NEC-85A NEC-85C
Cutting force 60KN 70KN 120KN 60KN 120KN
Cutting range

40mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

40mm

ACSR cable

50mm

ACSR cable

50mm

ACSR cable
Stroke 42mm 52mm 60mm 92mm 41mm
Voltage 18V 18V 18V 18V 18V
Capacity 3.0Ah 3.0Ah 3.0Ah 3.0Ah 3.0Ah
Charging time 45minutes 45minutes 45minutes 45minutes 45minutes
Package Plastic case Plastic case Plastic case Plastic case Plastic case



Accessories
Blade 1set
Battery 2pcs
Charger

1pc(AC110-240V, 50-60Hz)

Sealing ring

of cylinder

 1set

Sealing ring

of safety valve

 1set



  1. NEC-40A, Battery cable cutter for Φ40mm Cu/Al cable and armored cable
  2. NEC-50A, Battery cable cutter for Φ50mm Cu/Al cable and armored cable
  3. NEC-55A, Battery cable cutter for Φ55mm Cu/Al cable and armored cable
  4. NEC-85A, Battery cable cutter for Φ85mm Cu/Al cable and armored cable
  5. NEC-85C, Battery cable cutter for Φ85mm Cu/Al cable and armored cable



  1. OLED display
  2. One key control
  3. Cutting head rotates 350°
  4. Two stage hydraulics
  5. Shorter charging cycles
  6. Automatic retraction when crimp is completed
  7. Battery power display
 Lineman Tools NEC-85C Battery Powered Cable Cutter Electric Power Cable Cutting Tool 0
