Name: 50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: DLG-5T
Availability: InStock

MOQ:	5set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

DLG-5T

Type:

TYDLG-5T Reel Carrier Trailer

Max Capacity:

50kN

Reel Dimensions Diameter:

2800mm

Reel Dimensions Width:

1450mm

Weight:

1500kg

Overall Dimensions:

4000×2600×2500mm

Highlight:

Stringing Tools Reel Carrier Trailer

100mm Axel Reel Carrier Trailer

50kN Reel Carrier Trailer

Product Description

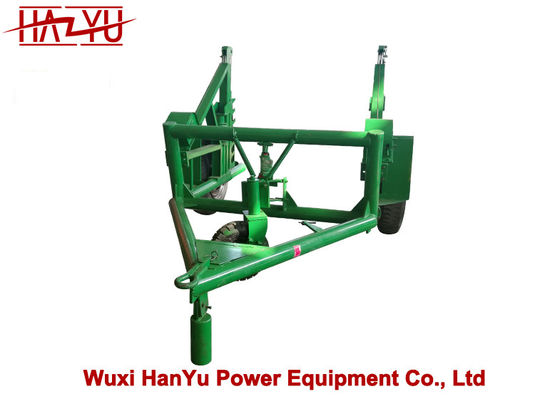

Overhead Line Stringing Tools Reel Carrier Trailer Axel Diameter 100mm

TYDLG Reel Carrier Trailer
The reel carrier is made of welded steel with protective coating. Two hydraulic jacks powered by a manual pumpare used to lift the reel. one disc brakes acting on the reel shaft is designed to control the unwinding tension.
Special models with different characteristics can be designed on demand.
Model	Max Capacity (kN)	Reel Dimensions(mm)			Overall dimensions (mm)	Weight (kg)
Model	Max Capacity (kN)	Diameter	Width	Axel diameter	Overall dimensions (mm)	Weight (kg)
DLG-3T	30	2400	1250	80	3800×2300×2200	900
DLG-5T	50	2800	1450	100	4000×2600×2500	1500
DLG-8T	80	3400	1800	120	4300×3200×2700	2300
DLG-10T	100	3600	2000	150	4600×3800×2900	3100

50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter 0
