280KN Overhead Line Stringing Equipment Hydraulic Wheel Puller
| MOQ: | 1set |
| Price: | USD139,000-142,000/set |
| Standard Packaging: | Container |
| Delivery Period: | 15-35days |
| Payment Method: | T/T |
| Supply Capacity: | 10Sets/Month |
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY280-8
Type:
Stringing Equipment Hydraulic Wheel Puller
Max Rope Diameter:
38mm
Bull-wheel Diameter:
960mm
Max Intermittent Pull:
280kN
Max Continuous Pull:
250kN
Pull At Max Speed:
120kN
Highlight:
280KN hydraulic wheel puller
,overhead line stringing equipment
,hydraulic wheel puller for power lines
Product Description

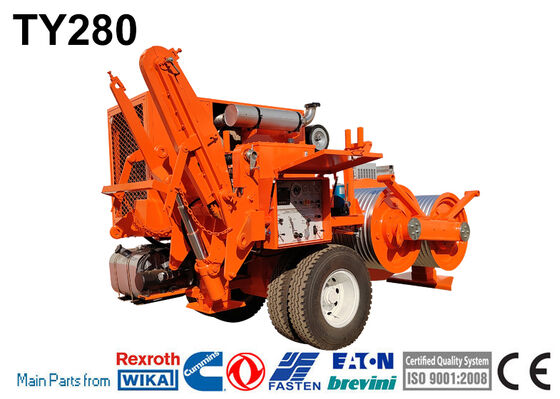

280KN Overhead Line Stringing Equipment Hydraulic Wheel Puller
| TY280 Hydraulic Puller |
This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains. |
| Performance |
Max intermittent pull: 280kN |
| Max continuous pull: 250kN | |
| Pull at max speed: 120kN | |
| Speed at max pull: 2.5km/h | |
| Max speed: 5km/h | |
| Characteristics | Max rope diameter : 38mm |
| Bull-wheel diameter: 960mmMax diameter of connector: 100mm | |
| Max diameter of rope reel: 1600mm | |
| Max diameter of connector: 100mm | |
| Groove number: 11 | |
| Total weight: 15500kg | |
| Overall dimension (length*width*height): 6000×2500×2700mm | |
| Engine | Diesel: 298kw(400hp) |
| Electrical system: 24V | |
| Cooling system: water | |
| Main configuration | The brand of the parts may change depending on the factory's spare parts availability. We guarantees that it will use parts of similar quality, and the actual usage parameters will not change. |
| Engine: Cummins | |
| Hydraulic meter: German WIKA | |
| Main pump: German Rexroth | |
| Main motor speed reducer: German Rexroth / Italy Bonfiglioli | |
| Operating handle: German Rexroth | |
| Tail bracket hoisting motor: American Eton | |
| Hydraulic Transmission | Closed hydraulic circuit for step less speed variation in both rotating directions. |
| This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. | |
| Additional Devices | Swivel guide rope roller |
| Air brake system for the trailer | |
| Trailer for towing at max speed of 15 km/h | |
| Lighting system for the trailer | |
| Electronic meter (extra charge) | |
| Extra shaft | |
| Hydraulic rope clamp for reel change | |
| Configuration | Hydraulic dynamometer with set-point and automatic control of maximum pull |
| Control instruments for hydraulic system and diesel engine | |
| On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600 | |
| Grounding connection point | |
| Hydraulic front stabilizer | |
| Hydraulic oil cooling system | |
